Product description:
Ratchet stainless steel cable ties for heavy-duty applications offer enhanced strength and durability. Ratchet Mechanism: The ratchet feature allows for easy and precise tensioning, ensuring a tight and reliable hold.
Feature:
- Material: 201/304/316 stainless steel
- Width: 4.6/7.9/10.00/11.50/12.00/16.00 (mm)
- Thickness: 0.25/0.30 (mm)
- Application fields: for binding communication cables, labels, boats, mining industry, advertisement, industry etc.
- Surface Treatment: spray (spread with plastics or plastic-coating)
- Versatile: Suitable for securing large cables, pipes, hoses, and other heavy components.
- Heavy-Duty Construction: Built to withstand demanding industrial or commercial environments.
- Max. Bearing Pressure:
(1). 100kg (4.6mm width bands);
(2). 140kg (7.9mm width bands);
(3). 200kg (12.0mm width bands).
Specifications:
| Model No. | Width(mm) | Length(mm) | Thickness(mm) | Max. Bundle Dia. | ||||
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | |
| XCTR-400 | 0.4 | 10 | 15.7 | 400 | 0.008 | 0.2 | 4.3 | 110 |
| XCTR -500 | 19.7 | 500 | 5.4 | 138 | ||||
| XCTR -600 | 23.6 | 600 | 7.1 | 180 | ||||
| XCTR -700 | 27.6 | 700 | 8.3 | 210 | ||||
| XCTR -800 | 31.5 | 800 | 9.4 | 240 | ||||
| XCTR -900 | 35.4 | 900 | 10.6 | 270 | ||||
| XCTR -1000 | 39.4 | 1000 | 11.8 | 300 | ||||
| XCTR 1100 | 43.3 | 1100 | 13.4 | 340 | ||||
| XCTR -1200 | 47.2 | 1200 | 14.6 | 370 | ||||
| XCTR -1300 | 51.2 | 1300 | 15.7 | 400 | ||||
| XCTR -1400 | 55.1 | 1400 | 16.9 | 430 | ||||
| XCTR 1500 | 59 | 1500 | 18.1 | 460 | ||||
| XCTR -2000 | 78.7 | 2000 | 23.6 | 600 | ||||
| XCTR -3000 | 118.1 | 3000 | 36.2 | 920 | ||||
| XCTR -4000 | 157.5 | 4000 | 47.2 | 1200 | ||||
| XCTR -5000 | 196.9 | 5000 | 59 | 1500 | ||||
Universal Stainless Steel Cable Tie Operation Manual

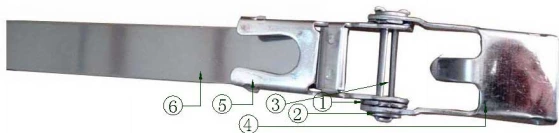

| Parts Name | ||
| ①Plum blossom Washer | ⑤Small bracket | |
| ②Round Washer | ⑥Stainless steel band | |
| ③Shaft | Attention： | |
| ④Big bracket | Please wear gloves when operating | |
 |
 |
 |

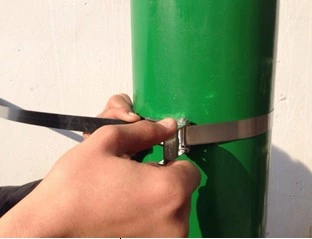

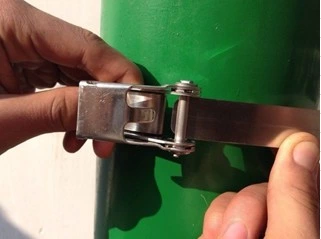

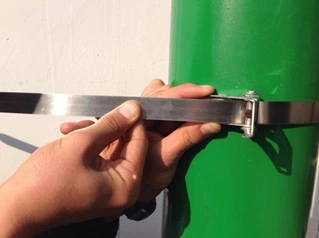

| Step 1：Insert the end of ⑥ stainless steel band into the slot of ③spindle. | Step 2:Hold ⑤bracket by left hand,tighten up the ⑥steel band by right hand. | Step 3:Hold the ⑤small bracket by left hand,pushing the ④big bracket back and forth,until the steel band strapped tightly. |
 |
 |
|

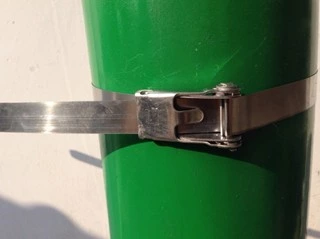

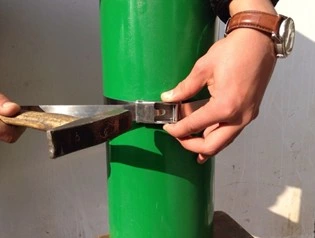

| Step 4:After strapped tightly,hold the steel buckle by left hand,take hammer by right hand,hammering the ④small bracket and ⑤big bracket down. | Step5:At the end, remove the rest ⑥steel band by scissors. |
